Running DeepSeek V4 Flash with ds4

Overview

DeepSeek V4 Flash is the efficiency-focused variant of the DeepSeek V4 family — a 284 billion parameter Mixture of Experts model with 13 billion active parameters. According to DeepSeek’s technical report, it scores 79% on SWE-bench Verified and 91.6% on LiveCodeBench.

ds4 (Dwarf Star 4) is a dedicated inference engine built specifically for this model architecture. Rather than a general-purpose runtime, ds4 targets the DeepSeek V4 family directly with architecture-specific kernel optimizations for AMD ROCm™ software. It is currently one of the best-performing implementations of DeepSeek V4 Flash on Strix Halo.

This tutorial shows how to use ds4-cockpit, a terminal UI, to set up ds4, download model weights, and start serving DeepSeek V4 Flash locally on the AMD Ryzen™ AI Halo Developer Platform.

What You’ll Learn

• How to install and launch the ds4-cockpit terminal UI
• How to create the ds4 ROCm toolbox container
• Downloading the recommended quantization for a single Halo node
• Starting the ds4 inference server and exposing an OpenAI-compatible endpoint
• Connecting a Web UI or coding agent to the local server

Setting the Memory Configuration

sudo apt install pipx
pipx ensurepath

pipx install amd-debug-tools

amd-ttm

amd-ttm --set <NUM>

Installing Software Prerequisites

System requirements for this configuration (single-node IQ2_XXS at 126k context):

• A Strix Halo system with at least 128 GB of unified memory.
• BIOS dedicated VRAM (UMA frame buffer) set to the minimum, so the shared memory pool can be as large as possible.
• The GPU shared-memory pool set to at least 110 GB: run amd-ttm --set 110 (see the memory configuration step above) and reboot. Lower values can fail with out-of-memory when the model loads at a 126k context. If your system has less memory available, lower the Context value in Server Mode instead.

ds4-cockpit uses container toolboxes to run the ds4 engine. Install podman, distrobox, and pipx:

sudo apt update
sudo apt install -y podman distrobox pipx

Available Quantizations

The ds4 author provides several quantized versions of DeepSeek V4 Flash in GGUF format. All models below use importance matrix (imatrix) calibration, which preserves higher precision for the parts of the model that matter most for coding and reasoning tasks.

The IQ2_XXS imatrix model is a good starting point. It fits comfortably on a single node and leaves enough memory for a reasonable context window.

Installing ds4-cockpit

ds4-cockpit is a light terminal UI to make getting up and running with ds4 on Strix Halo easy. It handles creating toolbox containers, downloading model weights, and starting servers. Install it with pipx:

pipx install "git+https://github.com/kyuz0/strix-halo-ds4-toolbox.git#subdirectory=ds4-strix-halo-cockpit"

Launch the cockpit:

ds4-cockpit

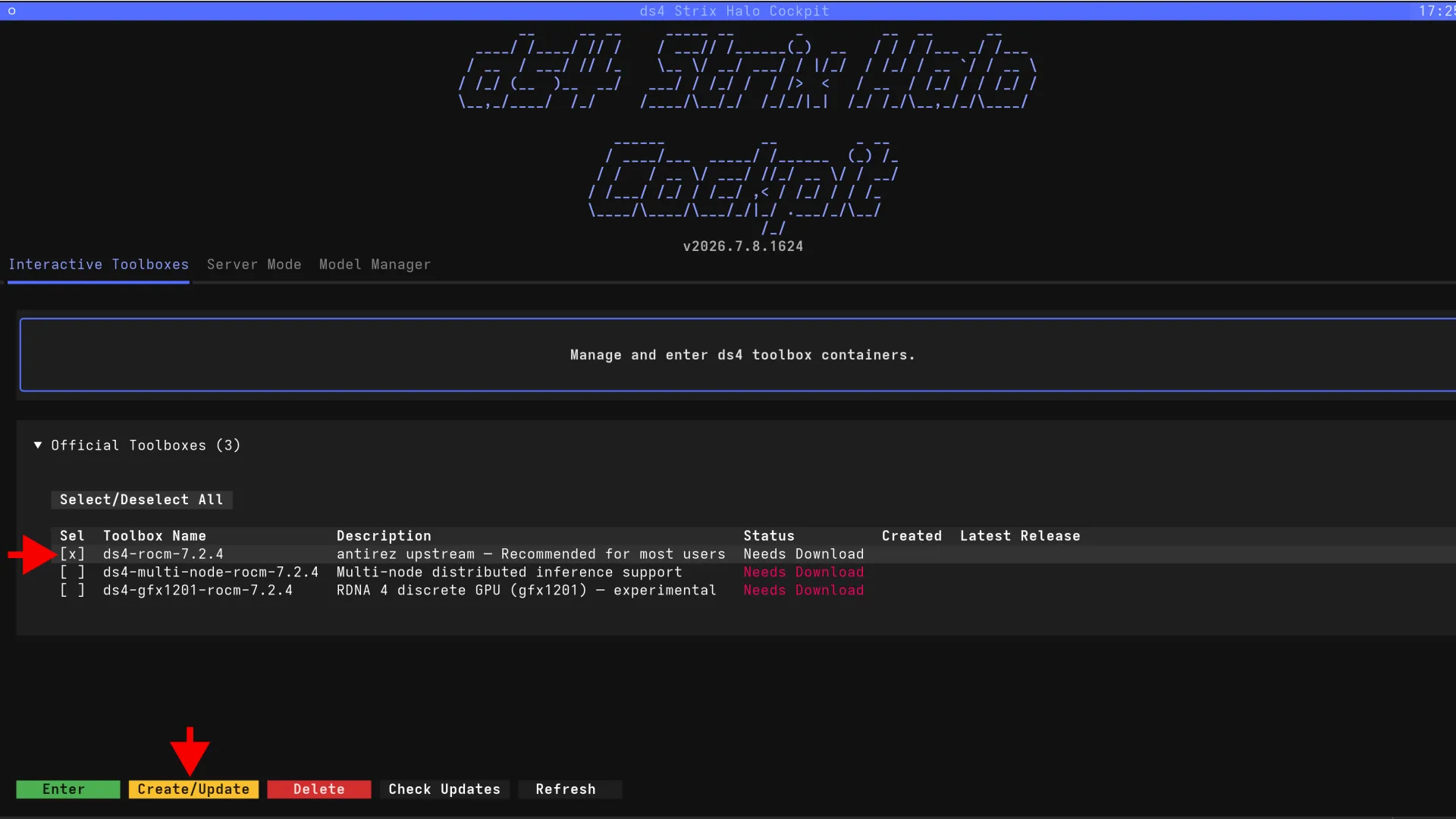

Creating the Toolbox

In the Interactive Toolboxes tab, select the latest available/stable toolbox (e.g. ds4-rocm-7.2.4) and click Create/Update. This pulls the container image and creates the toolbox environment.

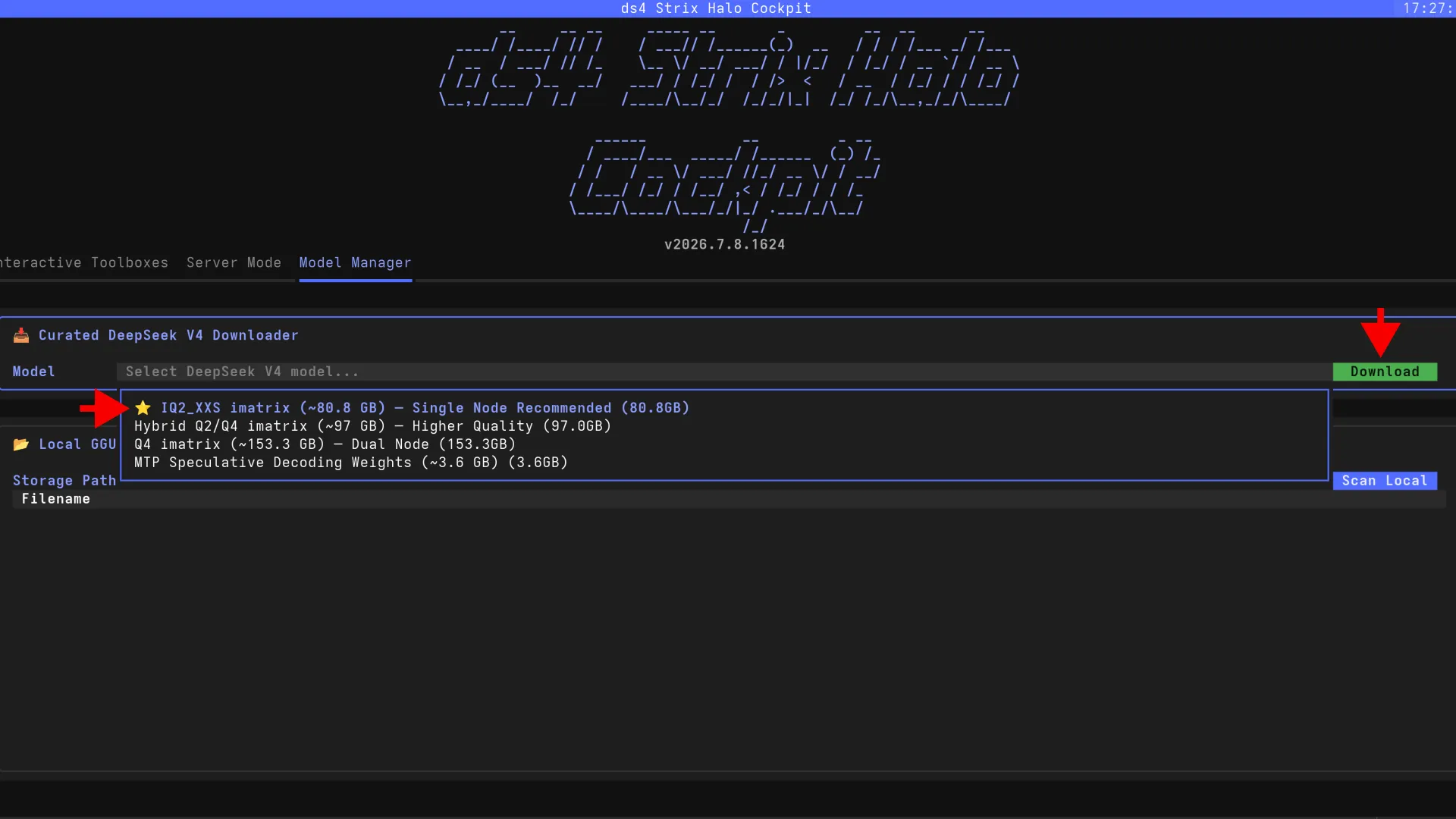

Downloading the Model

Go to the Model Manager tab. Select IQ2_XXS imatrix (~80.8 GB) from the dropdown and click Download. The model files will be saved to ~/ds4 by default (you can change the storage path).

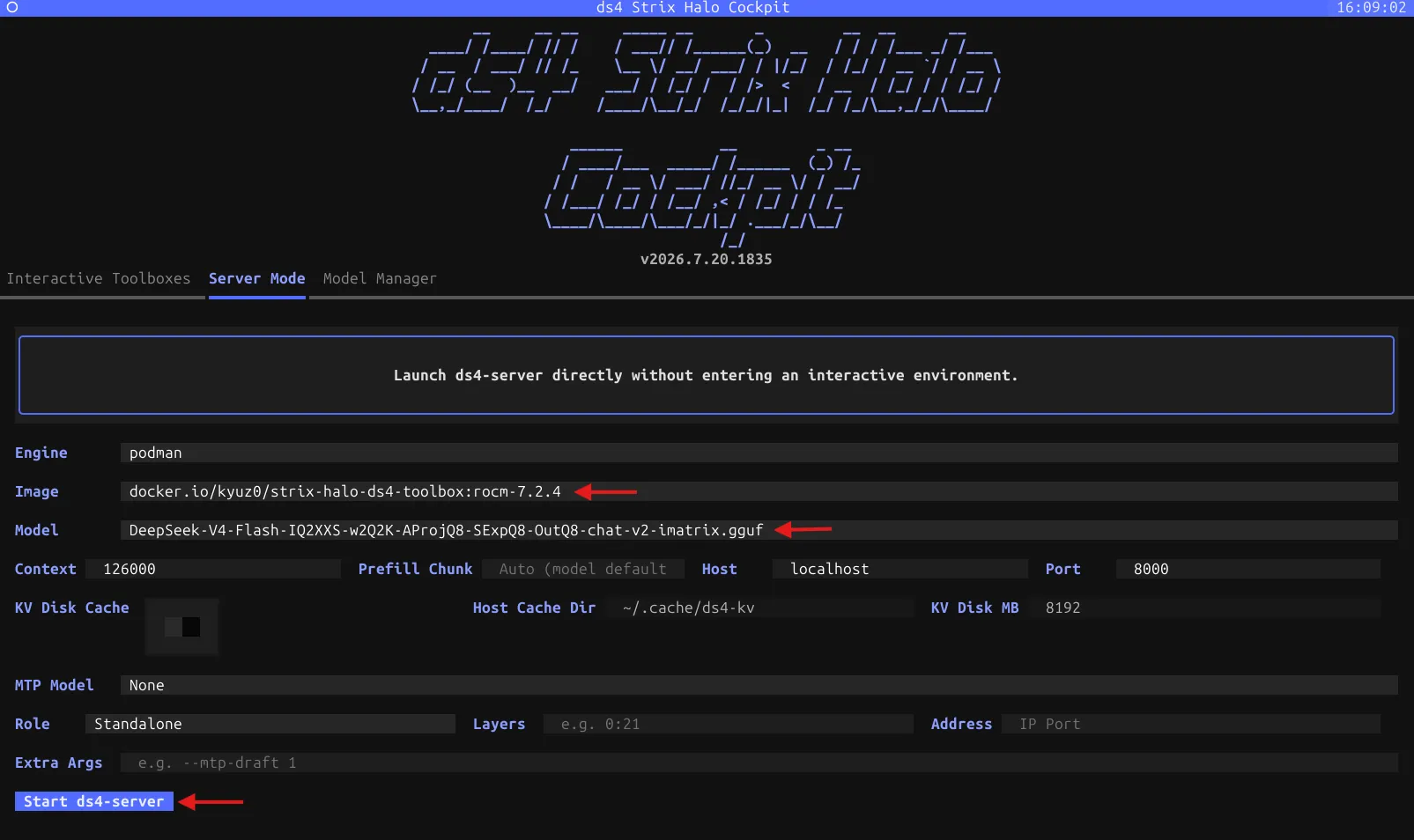

Starting the Server

Go to the Server Mode tab. Select the downloaded model and the toolbox, then configure the context size, host, and port. When ready, click Start ds4-server.

KV Disk Cache (optional). Turning on KV Disk Cache offloads the KV cache to disk (at Host Cache Dir, default ~/.cache/ds4-kv) so repeated system prompts are restored from SSD instead of being recomputed. It’s a performance optimization for coding-agent workflows with long, repeated prompts, and is not required to run the server.

The server will start and listen on port 8000, exposing an OpenAI-compatible API endpoint at http://localhost:8000/v1.

Quick test:

curl http://127.0.0.1:8000/v1/chat/completions \
  -H 'Content-Type: application/json' \
  -d '{
    "model": "deepseek-v4-flash",
    "messages": [{"role": "user", "content": "Hello!"}],
    "stream": false
  }'

Connecting a Web UI

You can connect any chat interface that supports the OpenAI API format. For example, to use HuggingFace ChatUI:

docker run -p 3000:3000 \
  --add-host=host.docker.internal:host-gateway \
  -e OPENAI_BASE_URL=http://host.docker.internal:8000/v1 \
  -e OPENAI_API_KEY=dummy \
  -v chat-ui-data:/data \
  ghcr.io/huggingface/chat-ui-db

Open http://localhost:3000 in your browser to start chatting.

Connecting a Coding Agent

The ds4 server exposes both OpenAI and Anthropic-compatible endpoints, so most coding agents can connect to it directly. For example, to add it to the pi coding agent, add the following block to ~/.pi/agent/models.json:

"ds4": {
  "name": "ds4.c local",
  "baseUrl": "http://localhost:8000/v1",
  "api": "openai-completions",
  "apiKey": "dsv4-local",
  "compat": {
    "supportsStore": false,
    "supportsDeveloperRole": false,
    "supportsReasoningEffort": true,
    "supportsUsageInStreaming": true,
    "maxTokensField": "max_tokens",
    "supportsStrictMode": false,
    "thinkingFormat": "deepseek",
    "requiresReasoningContentOnAssistantMessages": true
  },
  "models": [
    {
      "id": "deepseek-v4-flash",
      "name": "DeepSeek V4 Flash (ds4.c local)",
      "reasoning": true,
      "thinkingLevelMap": {
        "off": null,
        "minimal": "low",
        "low": "low",
        "medium": "medium",
        "high": "high",
        "xhigh": "xhigh"
      },
      "input": ["text"],
      "contextWindow": 131072,
      "maxTokens": 65536,
      "cost": { "input": 0, "output": 0, "cacheRead": 0, "cacheWrite": 0 }
    }
  ]
}

Next Steps

• Multi-node clustering: If you have two Halo devices, ds4 supports distributing the Q4 model (~153 GB) across both machines via pipeline parallelism. See the ds4-toolbox documentation for setup instructions.
• Speculative decoding (MTP): Download the MTP weights (~3.6 GB) and pass --mtp to the server for faster generation speed.
• KV cache disk offloading: For coding agent workflows, enable --kv-disk-dir so that repeated system prompts are restored from SSD instead of being recomputed each time.

For more information, see the ds4 repository and the ds4-cockpit toolbox.
